Baggage Door - Hinge Modification
Fuselage · 12. February 2022
We adapted the baggage door hinge in order to make the door removable. A doubler with nutplates backs up the F-1058 hinge frame. This way the frame is not weakened by the required holes for the nutplates. Now the hinge can be screwed on and off.

Fuselage – Upper Forward Fuselage Install
Fuselage · 13. December 2021
First, we installed the parking brake cable, since afterwards that would be much harder, also drilled holes for the engine mount for the same reason. Bucking these rivets involved some serious yoga, no pictures…

Fuselage – Flap Motor
Fuselage · 30. March 2021
Opted for the PH Flap Motor has integrated stop and position sensor. Built a bracket to hold the heavier motor and riveted an aluminum strip into the tunnel to attach wires routed through the tunnel behind the flap motor.

Fuselage – Baggage Area
Fuselage · 24. February 2021
Wanted the ability to remove the steps, therefore installed access panel in the baggage floor and a little access bay to hold the bolt while turning the nut from the access panel Installed receptables for the baggage tie down Installed access panel for COM 1 antenna Routed conduits

Fuselage – Back Seats
Fuselage · 22. February 2021
Routed conduits Installed seat backs and an option to attach them to the brace

Fuselage – Baggage Door
Fuselage · 04. February 2021
Borrowed tool from local burglar for bucking rivets :-)

Fuselage – Brake Lines
Fuselage · 20. November 2020
More tools needed :-) ordered tools for flaring and bending the aluminum lines

Fuselage – Fuel System
Fuselage · 07. November 2020
Installed fuel pump and filter as well as fuel flow sensor in the stock location in the center tunnel

Fuselage – Rudder Pedals
Fuselage · 21. October 2020
Got the rudder pedals from control approach Preferred the pedals to the stock ones Liked the design keeping the rudder cables in the tunnel The looks! I mean, come on!

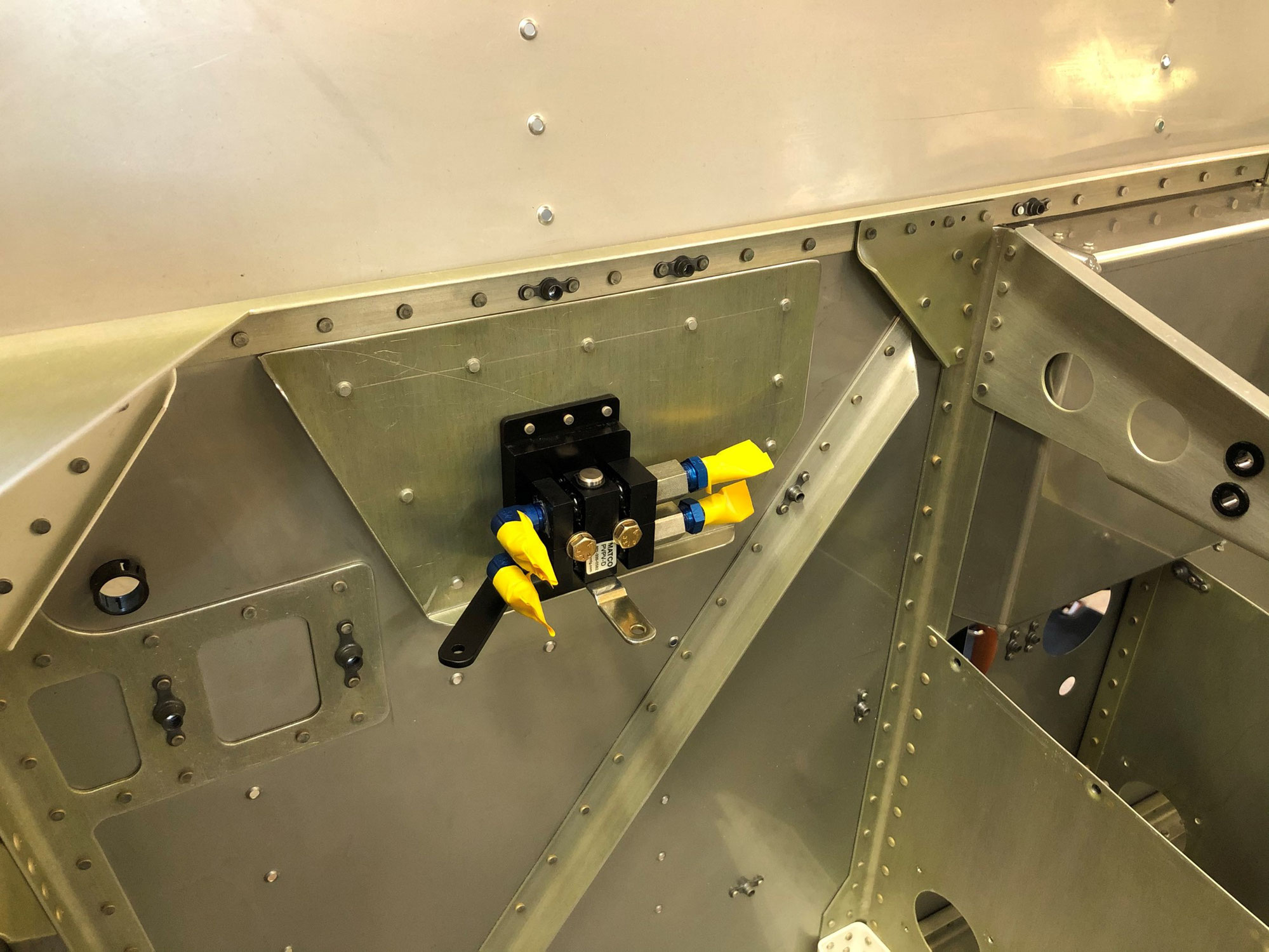

Fuselage – Parking Brake
Fuselage · 15. October 2020
Not in the plans but a necessity for me Went with the kit from airward Installed a doubler plate on the firewall for stability
